CMS Custom Design Serial Numbers

CMS 1008

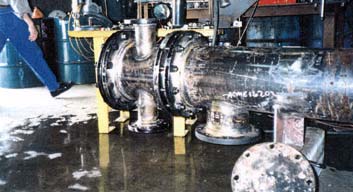

This 14" O.D. by 8' long, 4 pass unit was designed for  use in paper pulp processing. The unit featured a removable stainless steel U-Tube bundle for ease of maintenance and a specialized offset nozzle configuration to allow direct linkage with existing plant piping.

Bottom:

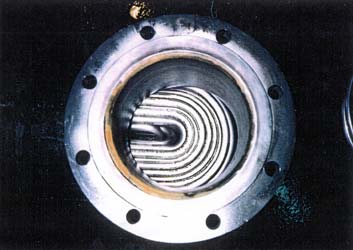

Detail from the U-Tube bundle showing crossover of U-Bends. The crossover design allowed for a proportionately greater number of tube placement sites while still maintaining TEMA minimum bend DIA's, creating a more efficient unit.

Manufactured for Liberty Carton Co.
CMS Model # AEU12-96H-4S
