CMS Custom Design Serial Numbers

CMS 1432.1

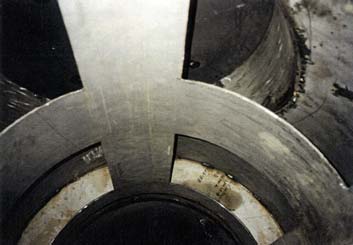

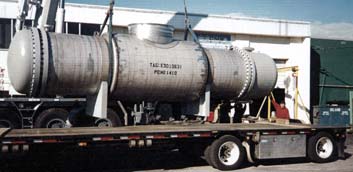

Featuring SA-240 316L shell side construction. This 66" diameter shell has a 78" diameter vapor belt with a 54" central junction opening for steam inlet. The vessel has (1900) 1" x .065 SA-249 316L tubes. 100% X-ray in accordance with ASME Sect. VIII Div. I. Heads are SA-516 Gr. 70 with stainless steel liners utilized to adhere to tubeside construction. Tube to tubesheet joints are seal welded with 100% liquid dye penetrant test performed in strict accordance with SNT-TC-1A. The completed vessel weight is in excess of 63,000 lbs.

Manufactured for Dow Chemical
CMS Model # BVM66/78-264H8-4SVB
