CMS 1021

Wrigley Mechanical commissioned twenty-four 10" O.D. by 8' long lube oil coolers for use in the Oahe Power Dam. The units featured carbon steel shells protected with an Ameron Epoxy Coating to prolong the shell's service. Brass tubesheets and (66) 90/10 CuNi low fin tubes (19 fins per inch) served in a straight two pass design.

From top to bottom right:.

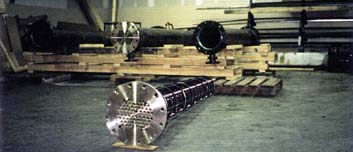

Skeletons for CMS 1021

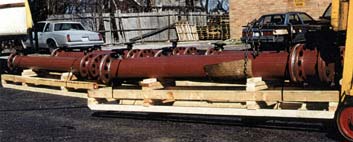

Fully assembled units for CMS 1021.

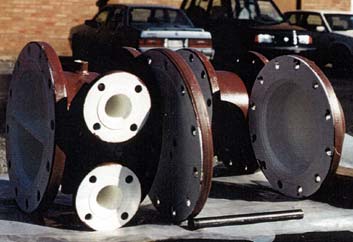

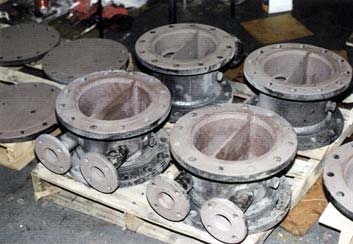

Finished pieces.

Manufactured for Wrigley Mechanical
CMS Model # BEM10-96H6F-2S
