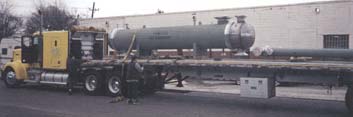

CMS 1440.5

Featuring 36" Carbon Steel shell SA-516 Gr. 70 with SA-240 316L tubeside construction. The vessel has (1174) 3/4" x .083 SA-249 316L tubes. Tube to tubesheet joints are seal welded with 100% liquid dye penetrant test performed in strict accordance with SNT-TC-1A. Tubeside construction is 316L with Radiographic examination in accordance with ASME Sec. VIII Div I UW-52.

Manufactured for Dow Chemical
CMS Model # BEM36-240H6-2S
