CMS 1038

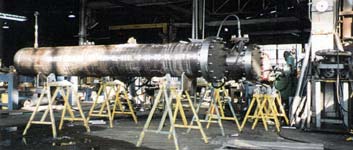

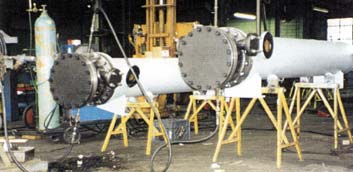

These lube oil coolers commissioned by Koch Refining featured nozzles with custom reinforcement pads, underwent magnetic particle examinations and were finished with a special high temperature Silicon Acrylic protective Epoxy coating from the Dewar Holland Coatings Co.

The units were 14" O.D. by 12' long, of carbon steel construction, and contained (92) 5/8" O.D. x 16 BWG low fin (.049 wall) tubes.

Manufactured for Koch Refining Co.
CMS Model # AEU14-144H6F-2S
