CMS 1027

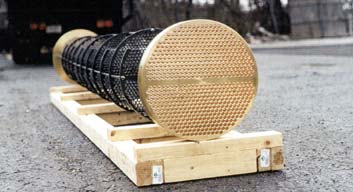

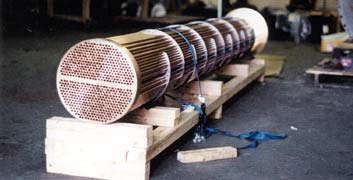

A 14" O.D. by 10' long lube oil cooler featuring a straight tube bundle containing (590) 3/8" O.D. x 22 BWG A/SB-111 copper tubes.

Our improved design increased cooling capacity while maintaining existing piping. CNC drilling of this assembly allowed for the placement of a maximalized number of tubes across the tubesheet face.

Manufactured for 3M Company
CMS Model # BEW14-120H3-2S
