CMS Custom Design Serial Numbers

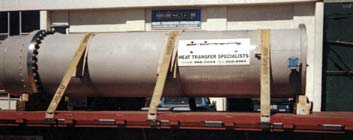

CMS 1407.1

Featuring 36" carbon steel shell SA-516 Gr. 70 with SA-240 304L tubeside construction. The vessel has (1155) 3/4" x .083 SA-249 304L tubes. Tube to tubesheet joints are seal welded with 100% liquid dye penetrant test performed in strict accordance with SNT-TC-1A. Radiographic examination in accordance with ASME Sec. VIII Div. I UW-52. Carbon steel components were finished with a 3 coat epoxy paint system for use in corrosive environmental service.

Manufactured for Praxair
CMS Model # BEM36-144V6-1S
