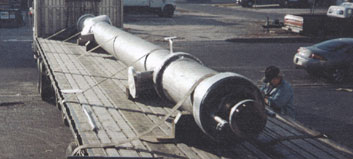

CMS 1449

Featuring all SA-240 304L construction with a bellows type expansion joint. The 60° long reactor piece attached features 100% Radiographic examination in accordance with ASME Sec. VII Div. I UW-51. The completed reactor section was then fitted with an 11 part metallic catalyst system to enhance performance. Tubeside features (333) 3/4" O.D. x 18 BWG SA-249 TP 304L tubes.

Manufactured for Praxair
CMS Model # BEM20-336V6-1HEJ
