CMS 1231

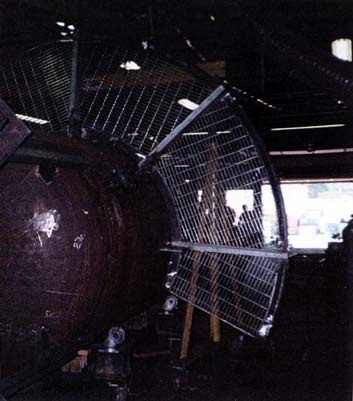

Featuring 72" O.D. vertical kettle assembly with full platform and ladder assembly of galvanized construction. The vessel features 100% x-ray in accordance with ASME Sec, VIII Div. I. A 24" O.D. 304 stainless steel "U" bundle is inserted near top of unit with davit assembly for easy removal for internal inspection. Exterior surface was prepared to SSPC 6 and a carboline CZ11 coating was applied for protection.

Below:

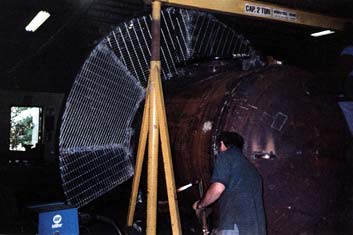

A CMS technician performing fit-up of galvanized platform and cage ladder assembly.

CMS Model # BKU72/24-48H8-2S
